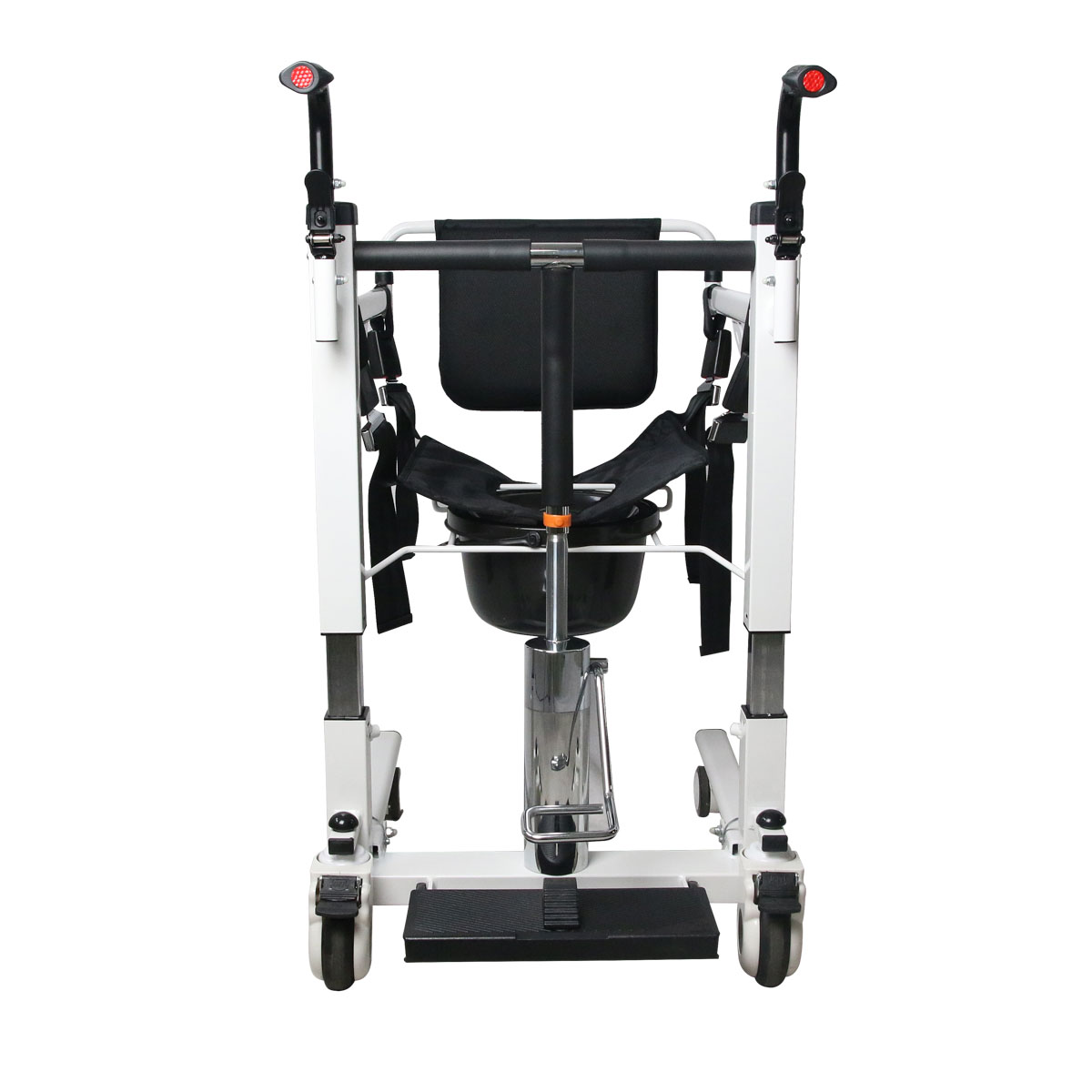

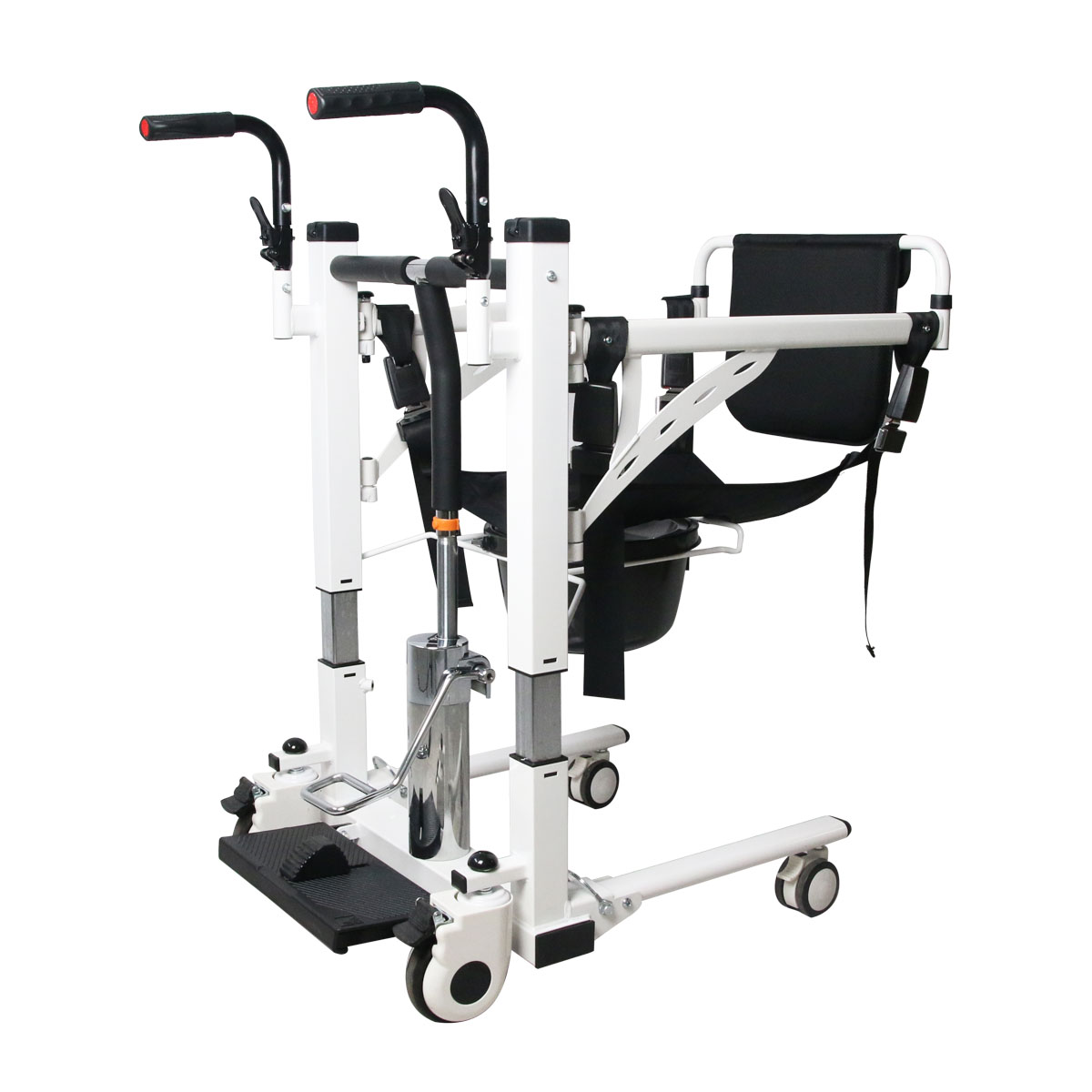

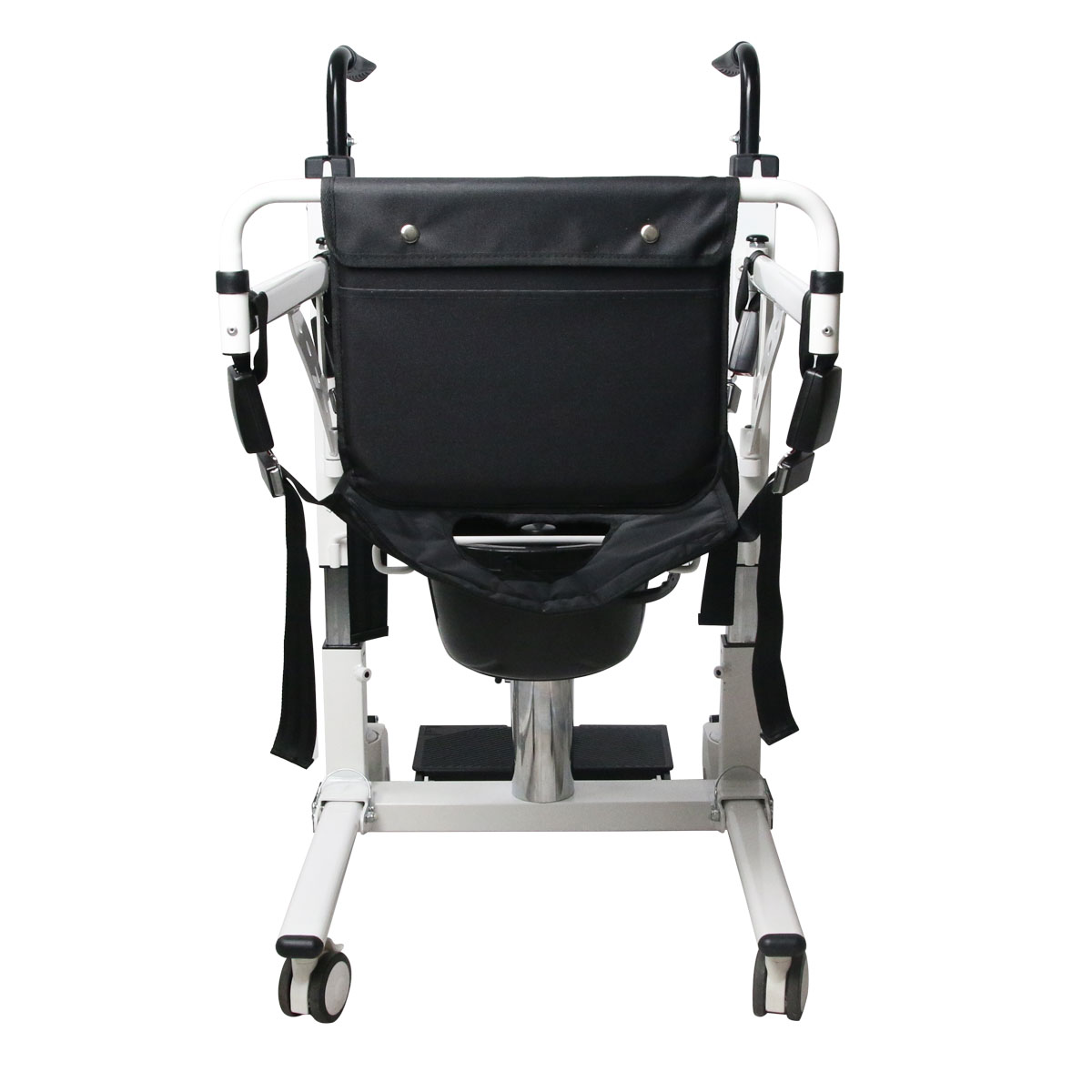

Lift chair with wheels "ESTIA IV"

SKU:
0811956
Brand:
MOBIAK
2
Years warranty
Max Weight
120
kg

Description

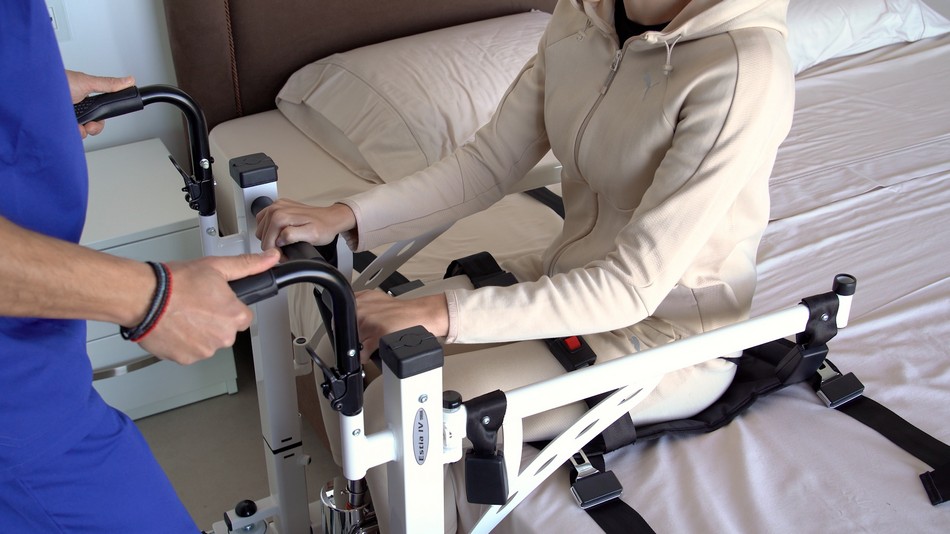

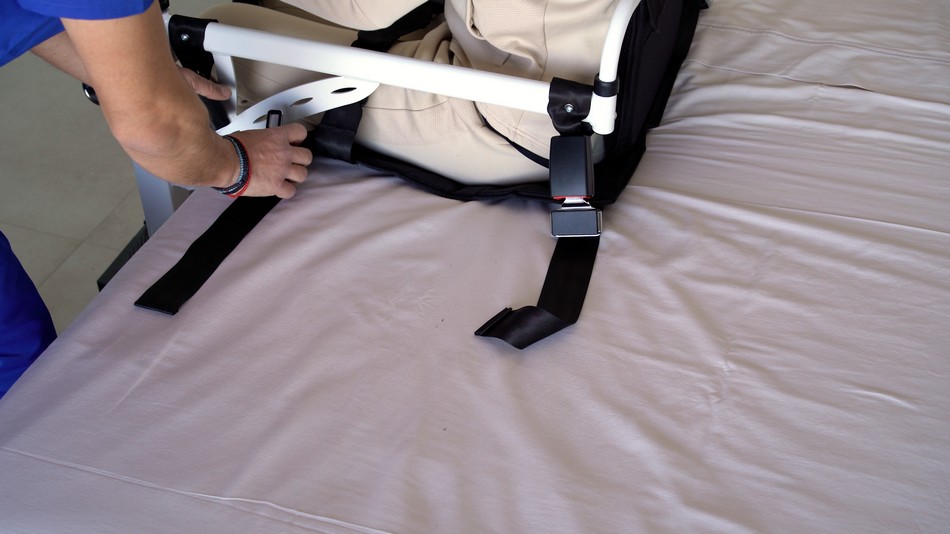

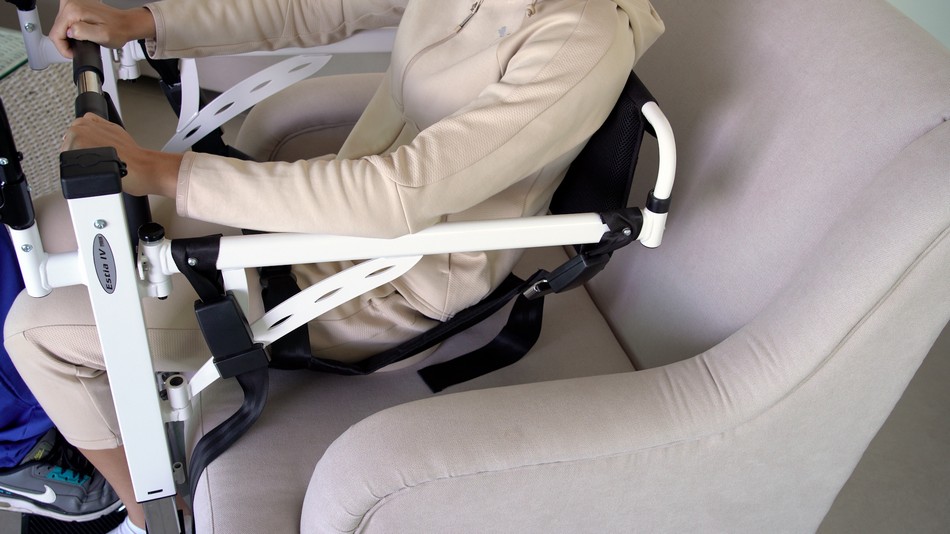

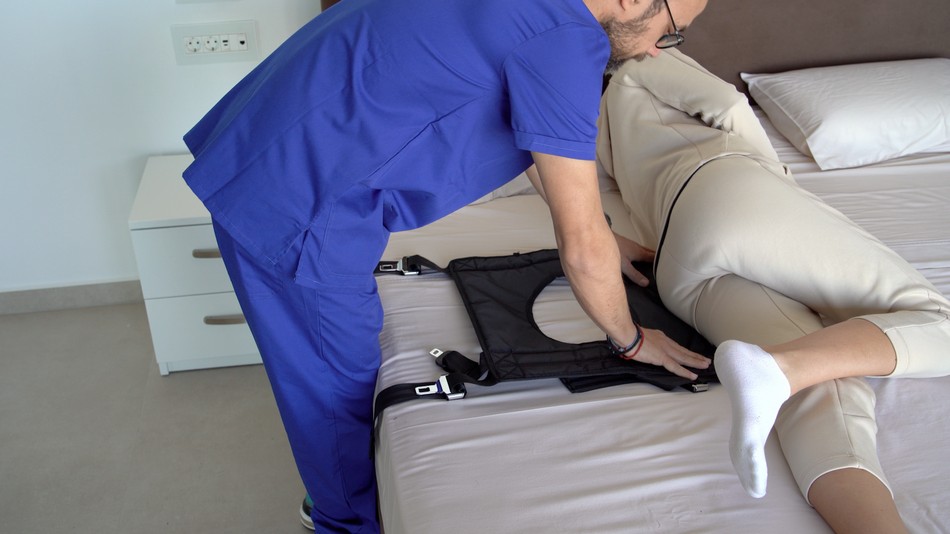

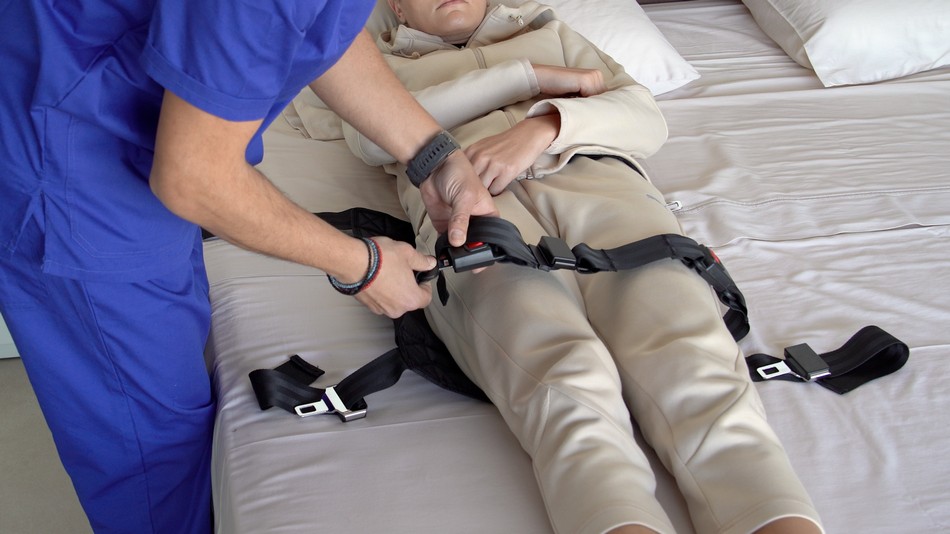

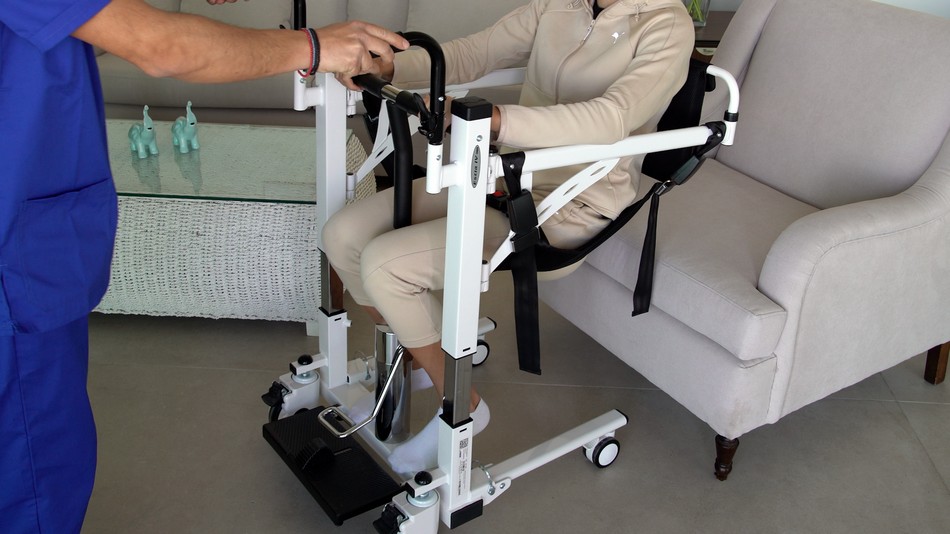

The ESTIA IV wheeled lift chair can be used to transport patients within the home, to and from their bed/chair, and/or as a commode chair thanks to its built-in bucket. It has a fabric seat with cotton padding and three restraint-suspension belts for easy and safe transport. It has a fabric seat with cotton padding and three restraint-suspension belts for easy and safe transport in the car seat. The seat height is adjustable via a hydraulic pump.The MOBIAK lifting chair range incorporates patented design features related to the lifting mechanism and seat structure.

Specifications

FRAMESTEEL
SEAT & BACKREST FABRIC MATERIALNYLON WITH COTTON LINING
REAR CASTORS3”
FRONT CASTORS5”
BRAKESIN FRONT AND REAR CASTORS
FOOTRESTFOOTREST PLATFORM
WITH HYDRAULIC LIFTING SYSTEMTHE HYDRAULIC PUMP CONTROLS THE LIFT OF THE SEAT BASE AND THE LEG LIFT SYSTEM.









081195646cm43cm43cm37cm59cm88cm93-109cm*
102-119cm**
46-62cm*
56-72cm**
3” 5”120kg28.5kg



* Measurement at the lowest position of the orange locking pin.

** Measurement at the highest position of the orange locking pin.



The lift chair can fit under a sofa or bed with a clearence height of at least 11cm.

Palletization/Box pieces

Box Pieces
1 Τεμ./pc.
Pallet (0.8m x 1.2m) (pcs):
8
Pallet (1m x 1.2m) (pcs):
8
