Ambulatory 24Hours Blood Pressure Monitor
Χρήσιμες Πληροφορίες:
Description
- The ABPM 0803846 is a handhold ambulatory blood pressure monitor, which is designed according to oscillography theory. The device could monitor human body blood pressure for up to 24 hours continuously and dynamically, providing an accurate basis for the diagnosis. It is applicable for using in hospital, clinics and other medical institutions.
- This device is designed for continuous 24-hour blood pressure monitoring, allowing users to carry out normal daily activities without issue. However, it is not suitable for sports or other physical activities.
Specifications
Performance:
NIBP:
- Measure Method: Oscillometry
- Measure Mode: The upper arm measure
- Automatic Measure Interval: 5, 10, 15, 20, 30, 40, 60, 90,120, 180, 240 minutes
- Measure range: Pressure:0kPa (0mmHg) -39.6kPa (297mmHg)
- Resolution: 1mmHg
- Accuracy: ±3mmHg
- Prompt parameter: SYS, DIA
- Inflation: automatic inflation by force pump
- Deflation: automatic deflation
PR:
- Measure range: 40bpm~240bpm
- Resolution:1bpm
Safety:
Power supply: DC 3V (2 × 1.5V AA alkaline dry battery)
Safety type: internally powered device, type BF applied partwith defibrillation protection
General Characteristics:
Operational environment:
- Temperature: 5°C~40°C
- Relative humidity: 15%~85%
- Atmospheric pressure: 700hPa ~ 1060hPa
Specific EMC, climate, mechanical environment: Do not use a mobile phone in the vicinity of the device, for the strong radiation
field produced by mobile phone would interfere with the normal function of use.
Storage environment:
- Temperature: -20°C~+55°C
- Relative humidity: ≤95%
Specific EMC, climate, mechanical environment: The device after packaged should be stored in a environment of -20°C~+55°C,
relative humidity no more than 95%, and well-ventilated room with no corrosive gas. Strong shock, vibration and snow and rain
should be avoided during transportation.
Features:
Product features:
- Compact and portable, user-friendly interface, easy to use.
- Patient range: adult, pediatric, neonate.
- 24-hour ambulatory NIBP monitoring function, up to 350 groups of ambulatory NIBP data can be recorded for once.
- Perfect combination of automatic and manual measurement method, up to 300 groups of data can be recorded for once
by manual measure.
- High-definition color TFT display, strong visibility.
- By data review interface such as ≪data list≫, ≪trend graph, big font≫, NIBP data is clear at a glance.
- Display of low power prompt, error message and time.
- Supply two kinds of unit: mmHg/kPa.
- English menu.
- Over-limit prompt function for parameters.
- Communicate with PC, PC software can achieve data review, measured results analysis, view of trend graph, reports
printing and other functions.
Software features:
- Connect to the device by USB interface.
- Download NIBP measure results from the device.
- Display of scoop-shape trend graph, filling-type trend graph, histo-gram, pie chart, correlation line graph.
- Edit every piece of NIBP data and add annotation to it.
- Edit basic information, doctor’s advice, NIBP status instruction, current medicine-taken information, etc.
- Support report printing and print preview.
Dimension: 128mm(L) × 69mm (W) x 36mm(H) (without packaging)
Weight: <300 g (with battery)

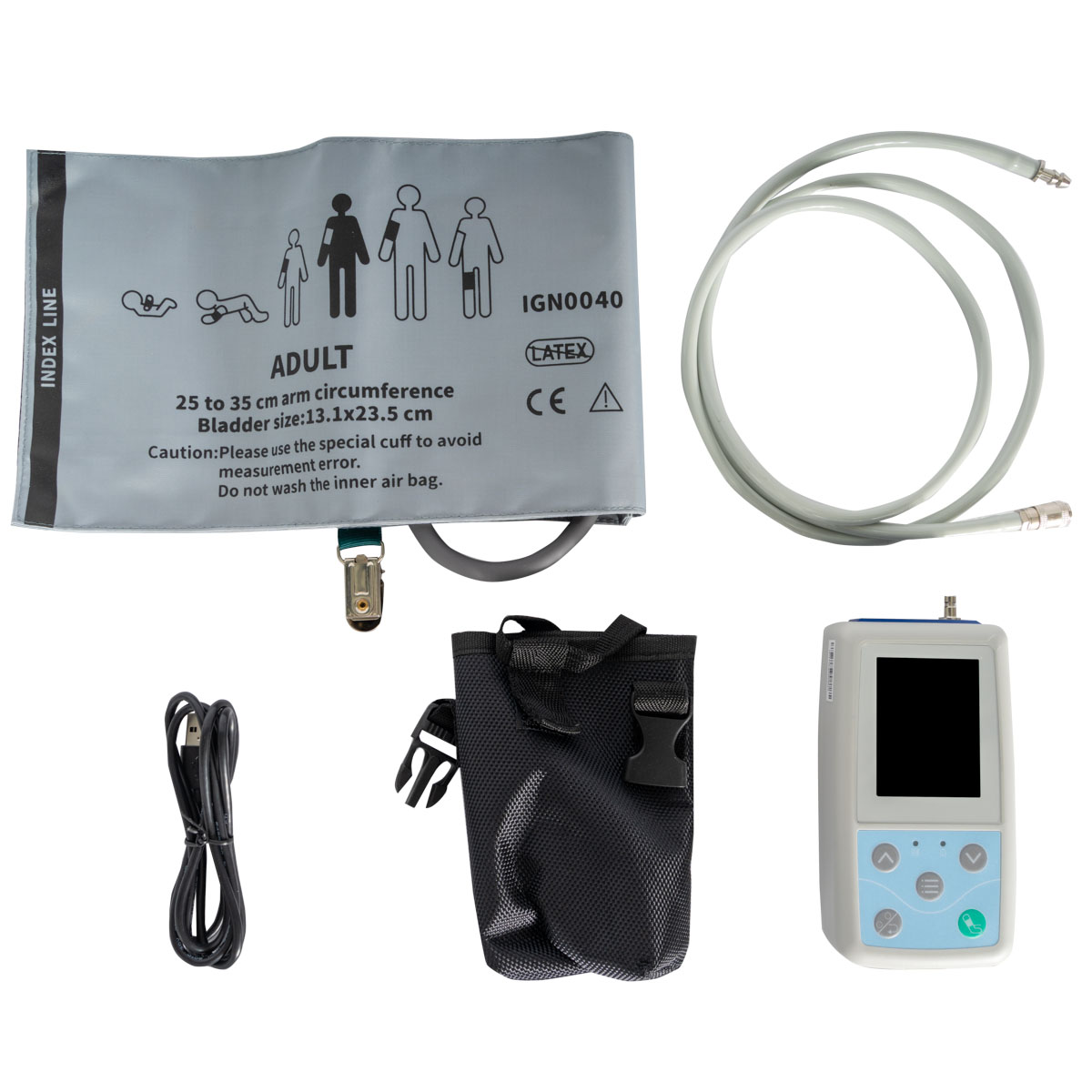

Package included
- Cuff for adults
- BP extending tube
- Usb cable
- Case
- 2x screws
- User manual
