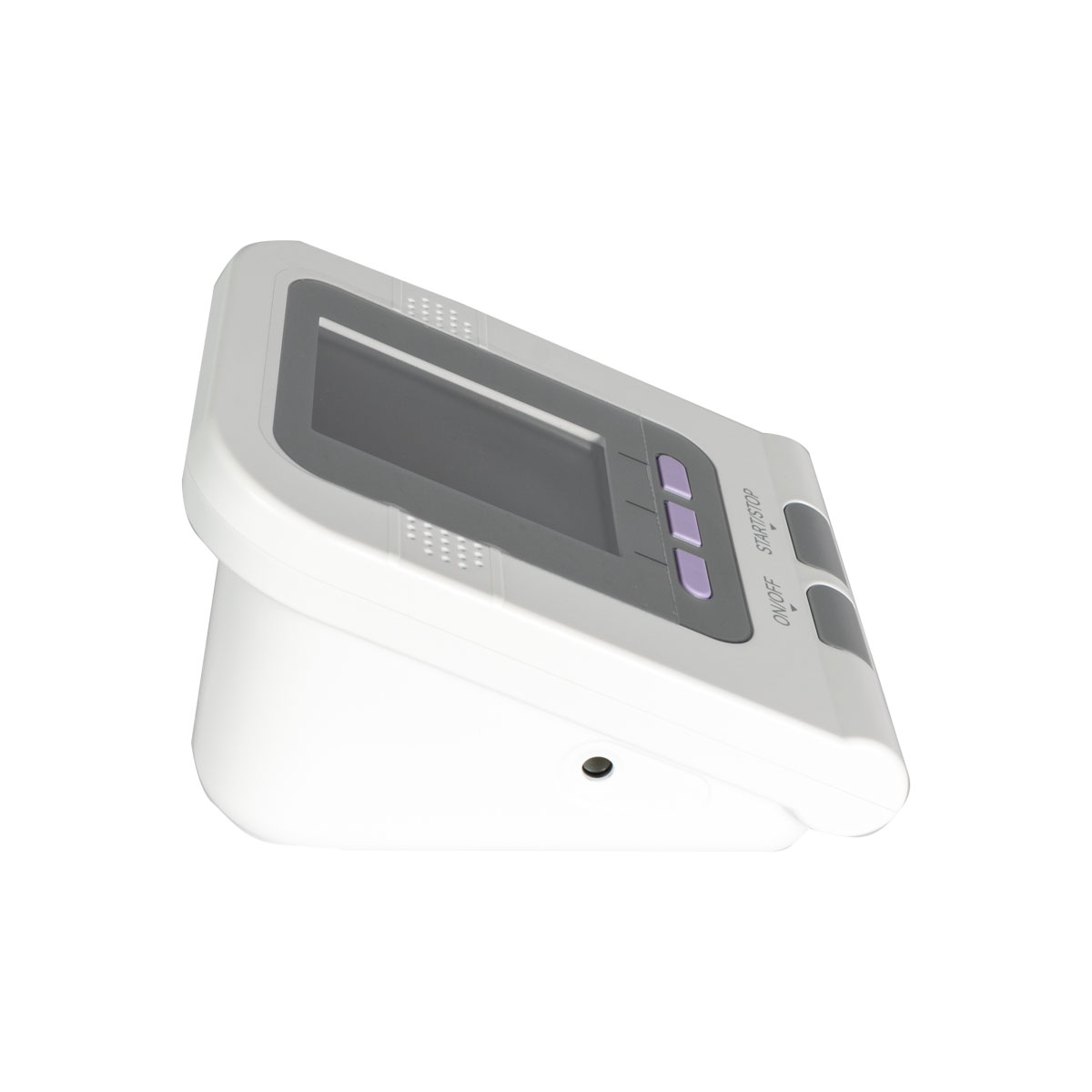

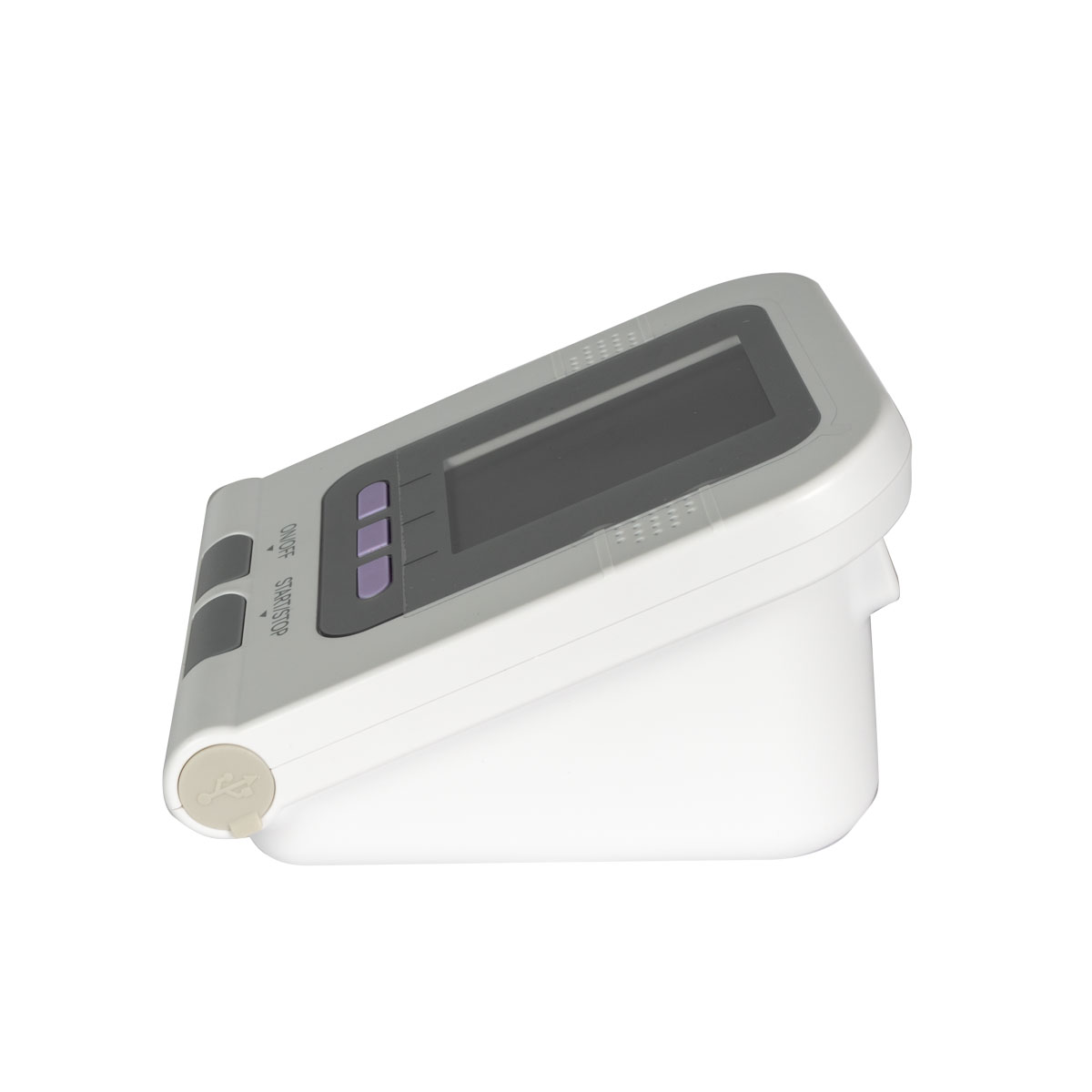

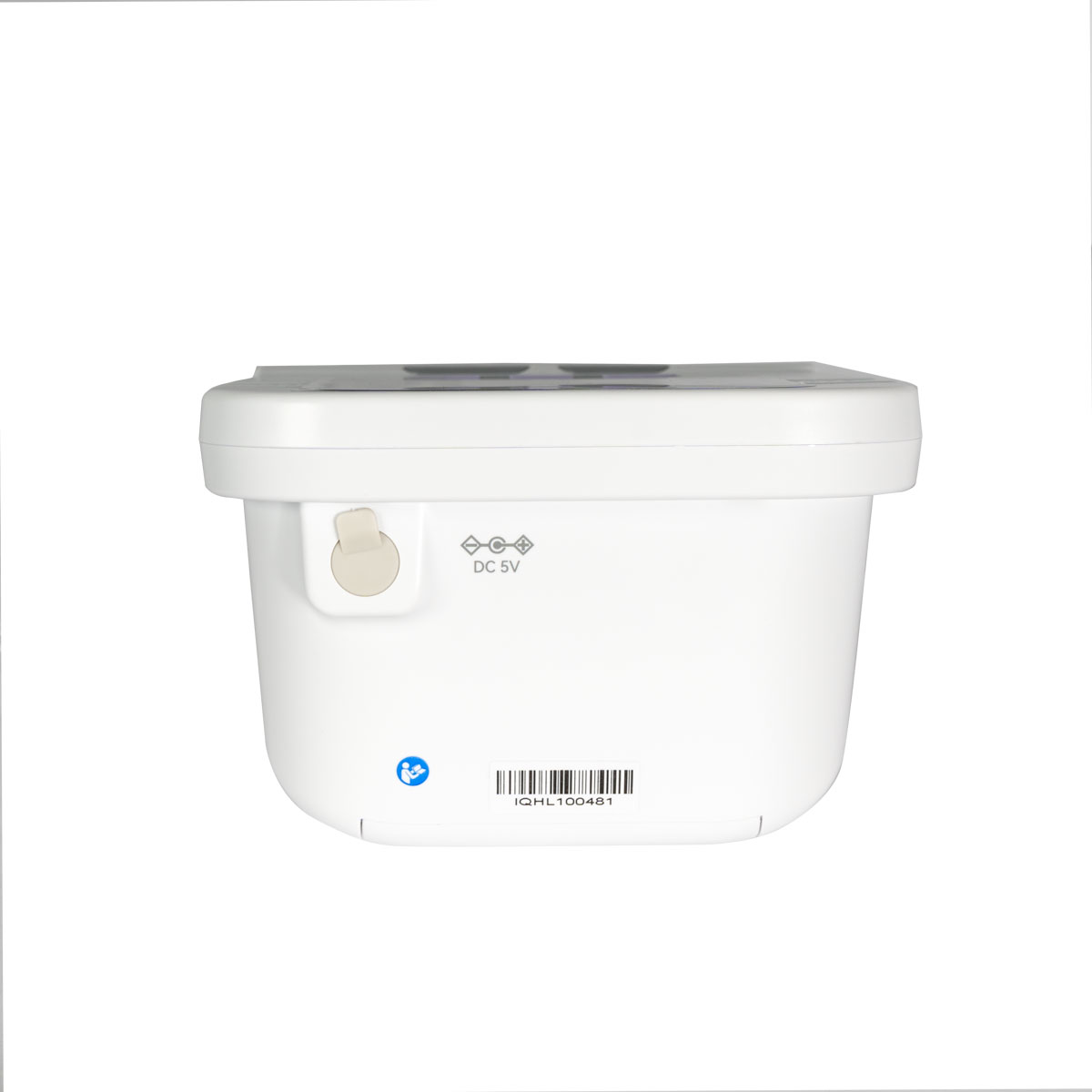

Digital Blood Pressure Monitor with Oximetry

Features:

• 2.8’’ Color LCD screen
• Cuff pressure range: 0-297 mmHg
• Measurement range:

Adults: SYS: 30-270 mmHg, DIA: 10-220 mmHg

Pediatric: SYS: 30-235 mmHg, DIA: 10-195 mmHg

Neonatal: SYS: 30-135 mmHg, DIA: 10-100 mmHg

• Pulse measurement range: 40-240 bpm
• Overpressure protection:

Adults: 295±5 mmHg

Pediatric: 240±5 mmHg

Neonatal: 145±5 mmHg

• Measurement analysis: Pressure: 1 mmHg, Pulse: 1 bpm
• Measurement accuracy: Pressure: ±3 mmHg, Pulse: ±5 bpm
• Ability to adjust blood pressure and oximetry limits
• Ability to activate an audible alarm when limits are exceeded
• Operating temperature: 5-40°C
• Operating atmospheric pressure: 700 hPa – 1060 hPa
• Storage environment: Temperature: -20 to +55°C, Humidity ≤ 95%
• Power supply: 4 alkaline batteries AA (110-240V transformer optional)
• Power consumption: ≤ 600 mA
• IP22
• For detailed technical specifications, refer to the user manual.

Warranty

• 2 years

Dimensions: 130 mm (W) X 110 mm (L) X 80 mm (H)

Weight: approximately 300 g (without batteries)

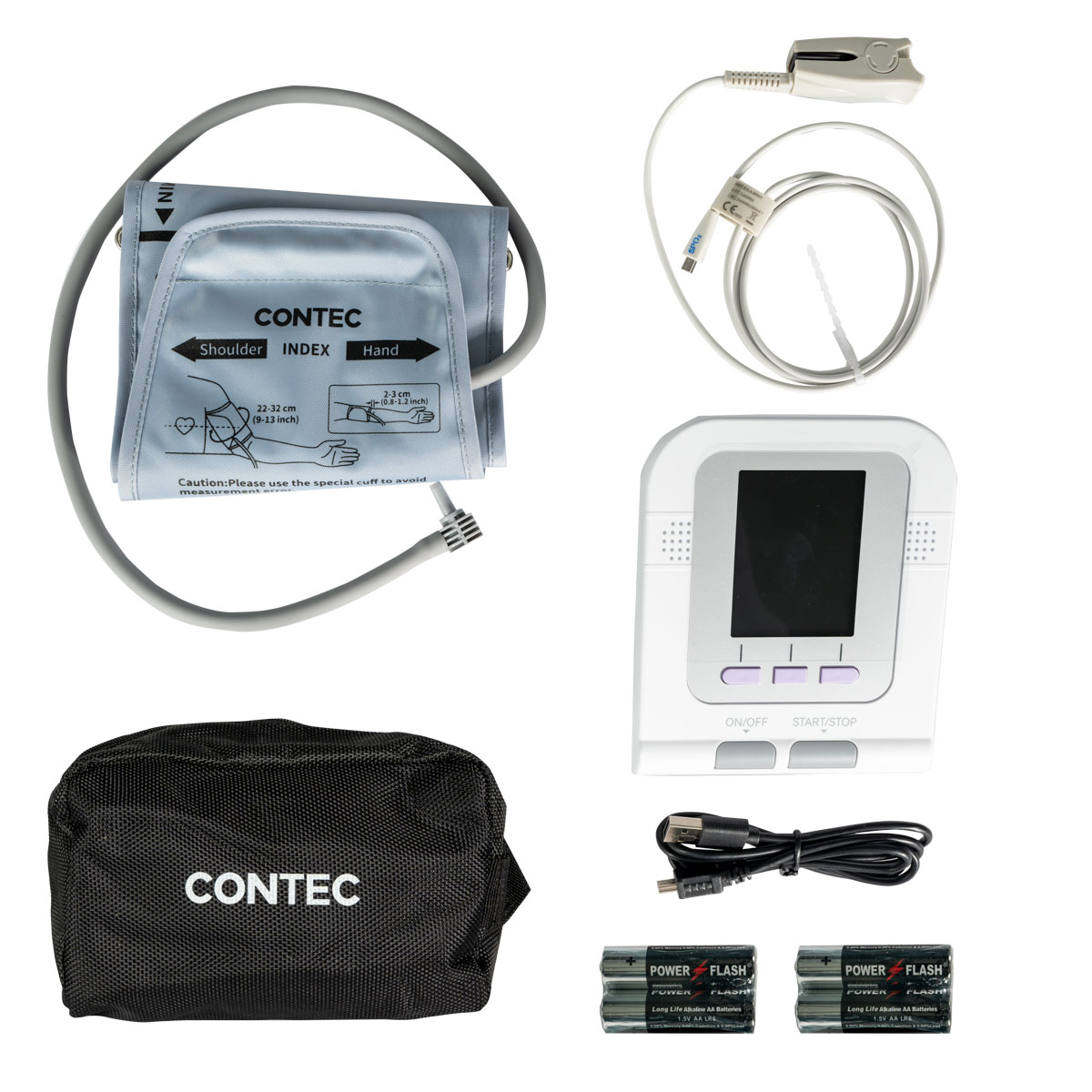

Package Contents

• Adult cuff
• 4 x Alkaline batteries AA
• USB cable for data transfer
• Transportation case
• User manual
• 0803872 Adult Spo2 sensor

Accessories / Spare parts:

• Adult Spo2 sensor (Ref: 0803872)
• Children's Spo2 sensor (Ref: 0803873)
• Neonatal Spo2 sensor (Ref: 0803874)
• Adult cuff (22-43 cm) (Ref: 0803875)
• Neonatal cuff (6-11 cm) (Ref: 0803876)
• Infant cuff (10-19 cm) (Ref: 0803877)
• Child's cuff (18-26 cm) (Ref: 0803878)
• Power supply (Ref: 0803879)
