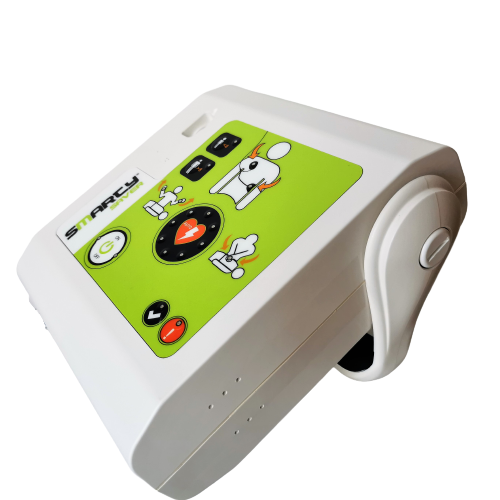

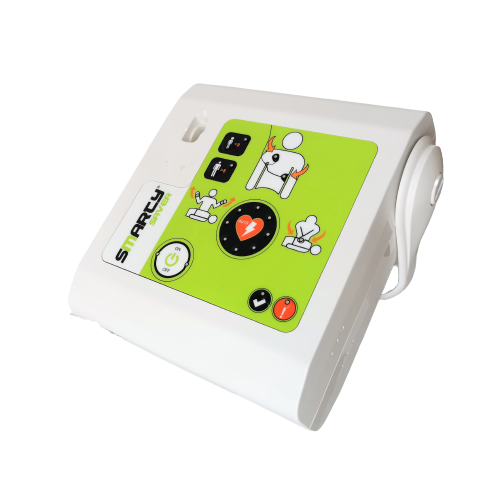

Automatic Defibrillator SMARTY SAVER 200J

SKU:

0803230

Categories:

First Aid Products

Defibrillators & Accessories

Brand:

AMI ITALIA

Years warranty

Description

The best portable AED (Automated External Defibrillator) conceived for a quick and simple treatment of the Sudden Cardiac Arrest (SCA) and to assist in delivering the Cardiopulmonary Resuscitation (CPR).

The lightweight and portability, thanks to the folding handle, the compactness and its catchy look, are conceived to meet the "gold standard" for early defibrillation in public large areas.

Specifications

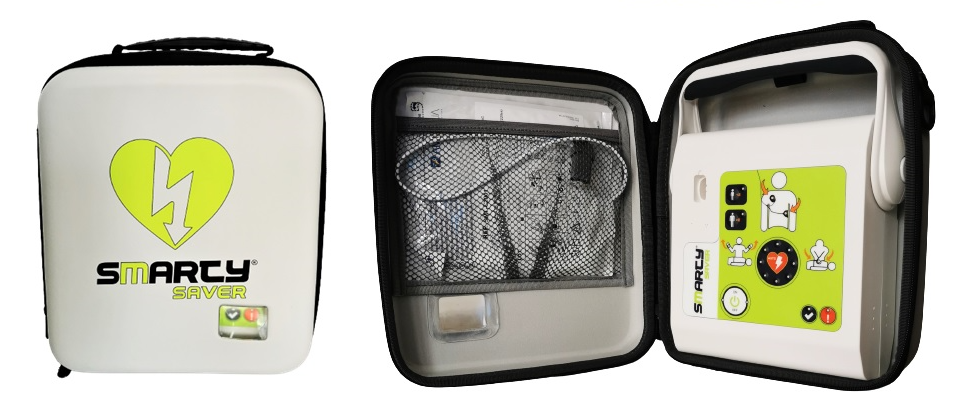

Package Contents

Main Device
Carrying Bag
UNIVERSAL pads (ref.: 0803232) (Adult & Children)
Battery (ref.: 0803231)

Smarty Saver Key Features

Reduced dimensions (smaller than an A4 sheet!)
Practical folding handle
Audible and visual signals for users
Guidance with voice commands and metronome
Universal pads for general use
BTE waveform defibrillation with <200J shock

Specifications

Output Waveform	Biphasic Truncated Exponential
Energy Output Sequence	Adults: Gradual, 150,200J Pediatric: Fixed 50J
Range of Resistance	20H - 200H
Charging Time	≤ 13 sec with shock at 150J ≤ 16 s with shock at 200J (New Battery)
Analysis Time	from 4 to 15 seconds
Audible Hints - Visual Hints	Device status: 2 LEDs red / green - Placing pads: 2 red LEDs - Do not touch the patient: 2 red LEDs - Touch the patient: 1 green LED - Adult patients: 1 green LED - Pediatric patients: 1 green LED - On/off button: 2 green LEDs - Electric shock button: 8 red LEDs
Handling	Three buttons - On/Off, Patient Select (adult/pediatric)
IP Protection Class	IP 56: Protection Against Dust and Water
Size	200x213x71 mm (with folded handle) 257x213x71 mm (with handle open)
Weight	1,56 Kg (with battery and pads)
Pads Dimension	Total surface 136cm2, active surface area 94cm2, cable length 120cm (outside the package)
Pads Lifetime	4 Years, (or as indicated on the package
Battery	Non-rechargeable battery, 8 cells Li-MnO2 12VDC-3000mAh
Battery autonomy	Up to 350 full rescue cycles. (200J shock + CPR). Up to 100 hours of continuous ECG analysis
Device Warranty	5 Years
Battery Warranty	4 Years
